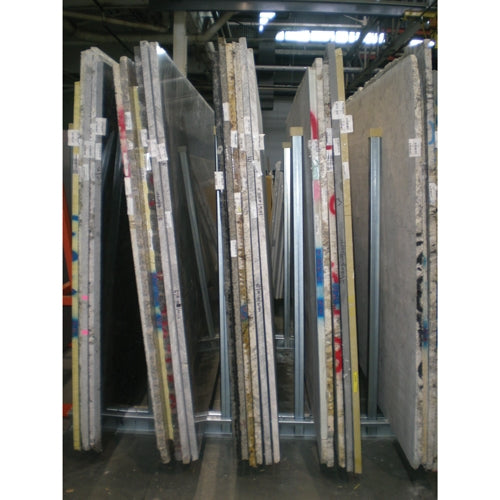

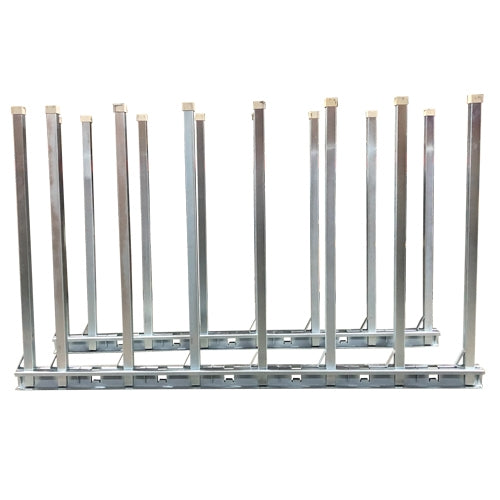

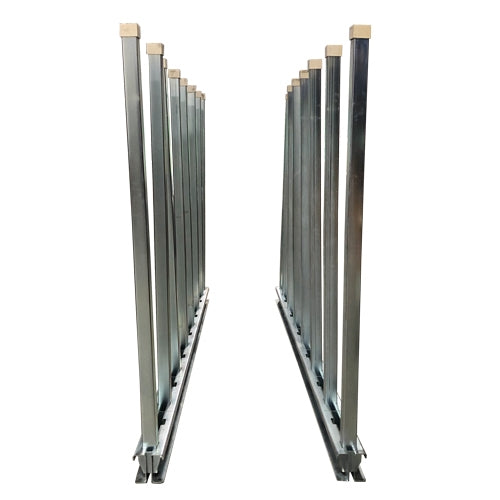

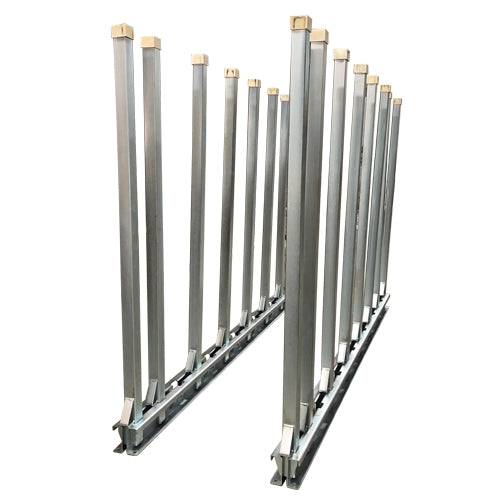

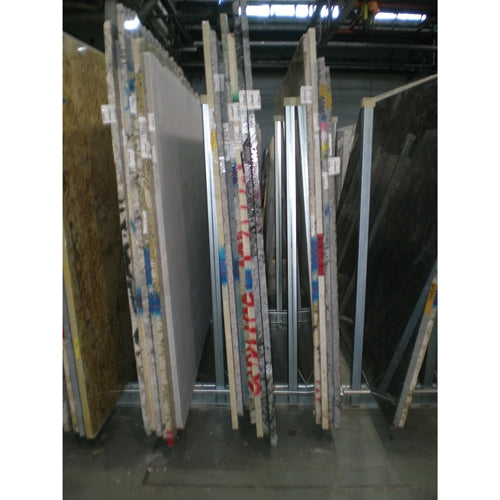

Weha Buffalo Bundle Slab Storage Rack – 10' Rail with 16 x 72" Safety Poles
The Safest and Most Advanced Vertical Stone Storage System in the World.
The Weha Buffalo Slab Rack represents the latest evolution in material handling. Featuring a world-patented 6-point locking system and extended 72" safety poles, this rack is specifically engineered for modern, oversized slabs—including quartz bundles that reach 80" in height. With a 57% increase in structural strength over standard designs, the Buffalo provides total peace of mind for storing granite, marble, and quartzite bundles.
Performance Engineered for Fabricators:

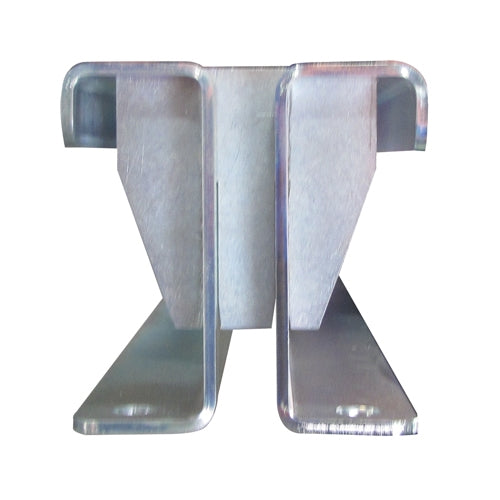

Patented 6-Point Locking Design: Unlike standard racks that only touch the pole in two places, the Buffalo base creates 6 different pressure points, doubling the surface contact for maximum stability.
Engineered for Tall Slabs: The 72" posts provide superior leverage and safety for taller quartz and natural stone bundles, preventing the risks associated with shorter, standard posts.
Weha Signature Safety Angle Bracket: Each pole features a built-in angle bracket to ensure the proper lean for every slab, minimizing weight transfer and maximizing safety.
Extreme Durability: Fully hot-dipped galvanized steel offers a maintenance-free, corrosion-resistant lifespan that far outlasts painted A-frames in industrial environments.

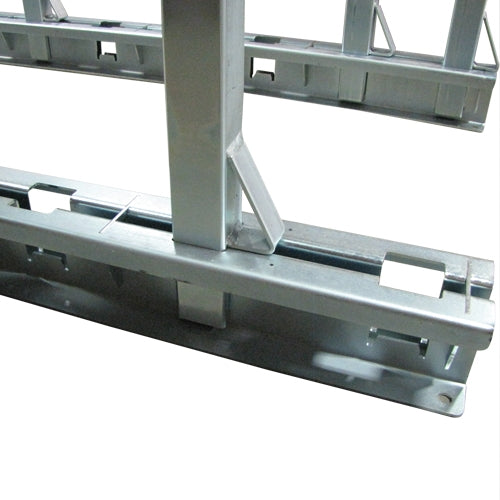

Precision and Security: Includes 14 receivers per base spaced at 8.5" on center, with poles featuring lock notches that securely "click" into the base for added structural integrity.
Technical Specifications:
Weight Capacity: Rated for 11,500 lbs per set of poles.
Dimensions: Includes two 10-foot rails and 16 square poles (72" height).
Pole Size: 2 3/8" x 2 3/8" x 72" long.
Protection: Equipped with white rubber caps for scratch-proof storage.
Finish: Fully Hot-Dipped Galvanized for maximum corrosion protection.
Installation: Features integrated anchor holes at each end for secure floor mounting
